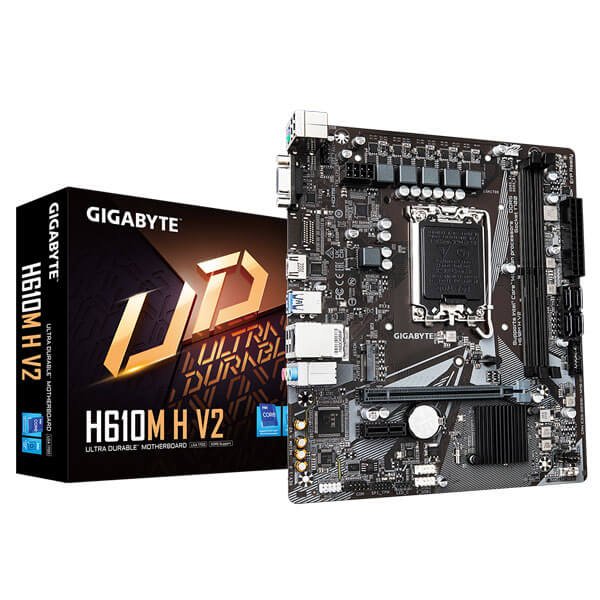

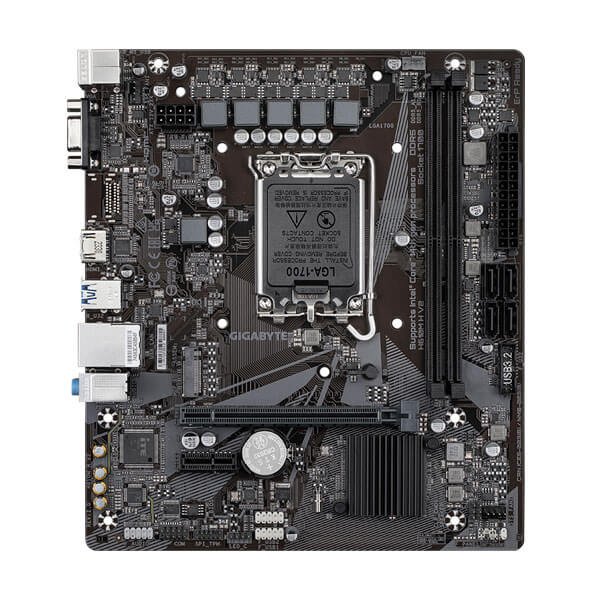

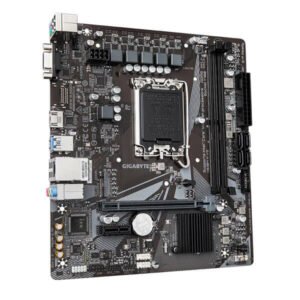

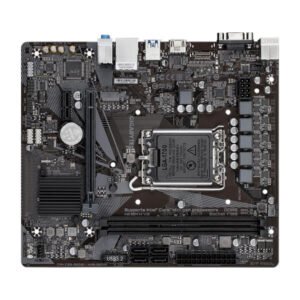

Gigabyte H610M H V2 DDR5 Motherboard
₹7,550.00 incl. GST
Product Model: H610M-H-V2
In stock
Gigabyte H610M H V2 DDR5 Motherboard
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Specifications:
| Model Name | H610M H V2 |
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors * Please refer to “CPU Support List” for more information. L3 cache varies with CPU |
| Chipset | Intel® H610 Express Chipset |
| Memory | 14th and 13th Generation Intel® Core™ i9/i7 Pocessors:- Support for DDR5 5600/5200/4800/4400 MT/s memory modules13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:- Support for DDR5 4800/4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:- 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Expansion Slots | CPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | Chipset:- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSDsupport)- 4 x SATA 6Gb/s connectors |
| USB | Chipset:- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x speaker header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Clear CMOS jumper1 x chassis intrusion header |

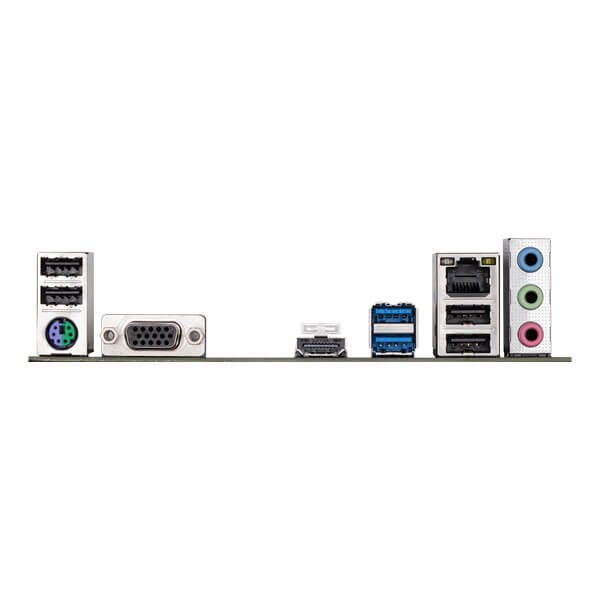

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| BIOS | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS- EasyTune- Smart Backup- System Information ViewerSupport for Q-Flash |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 22.3cm x 19.6cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
