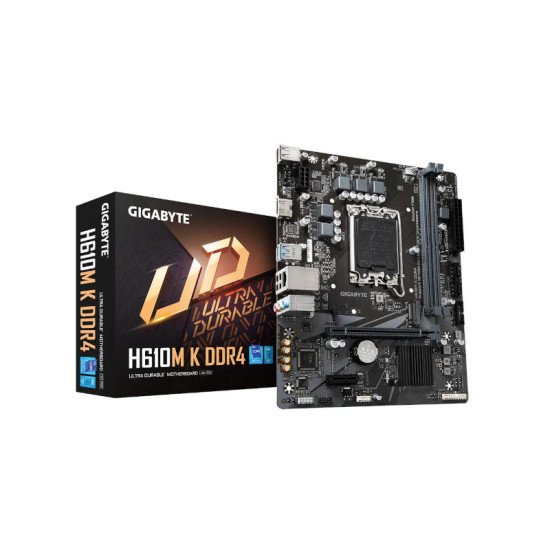

Gigabyte H610M K DDR4 Motherboard
₹6,289.00 incl. GST
Model:H610M K DDR4
Gigabyte H610M K DDR4 Motherboard
- PCIe 4.0* Design, Gen3 x4 M.2 , Realtek Gaming LAN , Anti-Sulfur Resistor, Smart Fan 6
- Supports 14th/13th/12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
| Specification | |
| CPU | LGA1700 socket: Support for 14th, 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU * Please refer to “CPU Support List” for more information. |
| Chipset | Intel® H610 Express Chipset |
| Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support List” for more information.) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC
High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors |
| USB | Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x HDMI port
2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection
Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)
LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit
Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
